Bill's Panzer Palace

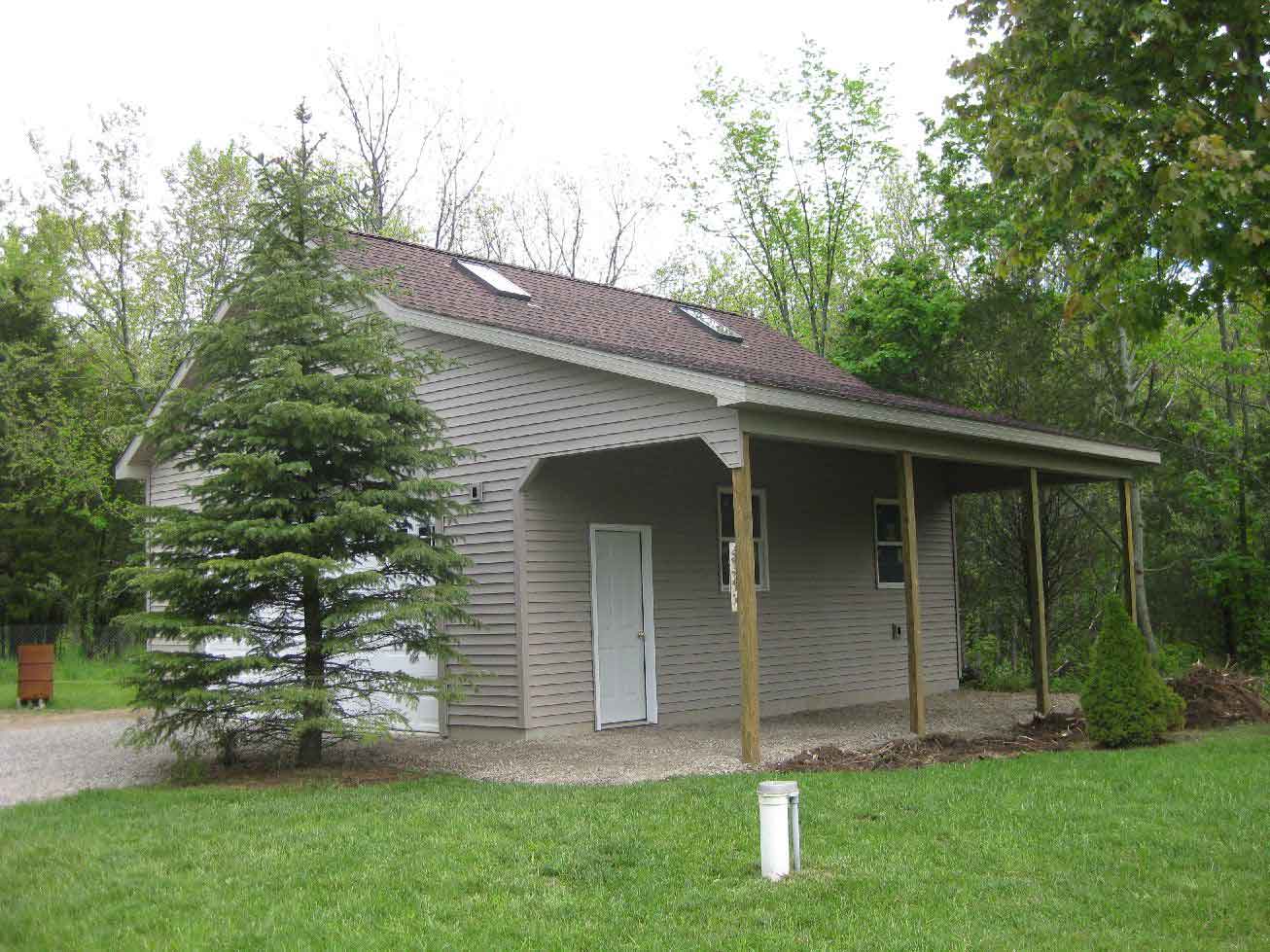

  Click picture to ZOOMMy new 'Shed'

I'm in the process of completing the 'shed' to house my growing Panzer collection. Click on the pictures to enlarge them.
It's a 34' x 28' building (including the lean-to) that I spent over 2 years designing. It's a compromise size - I didn't want to finance a bigger building with the economy the way it was.
My neighbor did an outstanding job of the site prep and pad, then a friend of mine put up the outer shell.
My dad and I put siding on it after my father-in-law directed my wife and I at putting the garage door in.
It's been quite a project.

You'll see when you browse the pictures that a lot of thought went in to putting enough space for tractors to fit in. I've decided to embrace flat surfaces - the ones that tend to get cluttered with junk. There's a 10' x 16' platform inside with a 4' x 16' extension along the wall. The platform is 4' from the ceiling, giving me about 6 feet of head space to walk around.

Some hints for your own 'shed':

  • Build the walls with 10' 2x4's - not studs. This gives 10' 6" of wall space (including top and bottom plates, plus any elevation above the floor from the concrete block base.
  • The 16' wide door makes the 24' wide building look symmetric.
  • I used a 9' tall door both to fit my F250 Super Duty inside and to make the building look smaller than it is.
  • It will never be big enough - get over it.
  • Insulate the walls - even if you don't plan to have a heater.  It deadens the noise.
  • Epoxy the floor before you move anything in.  Don't use cheap epoxy like Rustoleum - get good stuff.  I use Pratt&Lambert 2 part industrial epoxy in a light gray color.
  • Use 'attic' trusses.  This gave me a 12' wide by 6' tall (at the center) x 28' work shop above the main floor.
  • Build the stair case to code.  I had to re-configure mine so the building inspector would approve it.
  • Sky lights and a gable vent fan are necessary in the attic.
  • Put 7/16" OSB or plywood on the walls so you can screw shelving in without trying to find a stud.
  • Paint the walls white - even if it's white primer.  It'll help illuminate the whole garage.

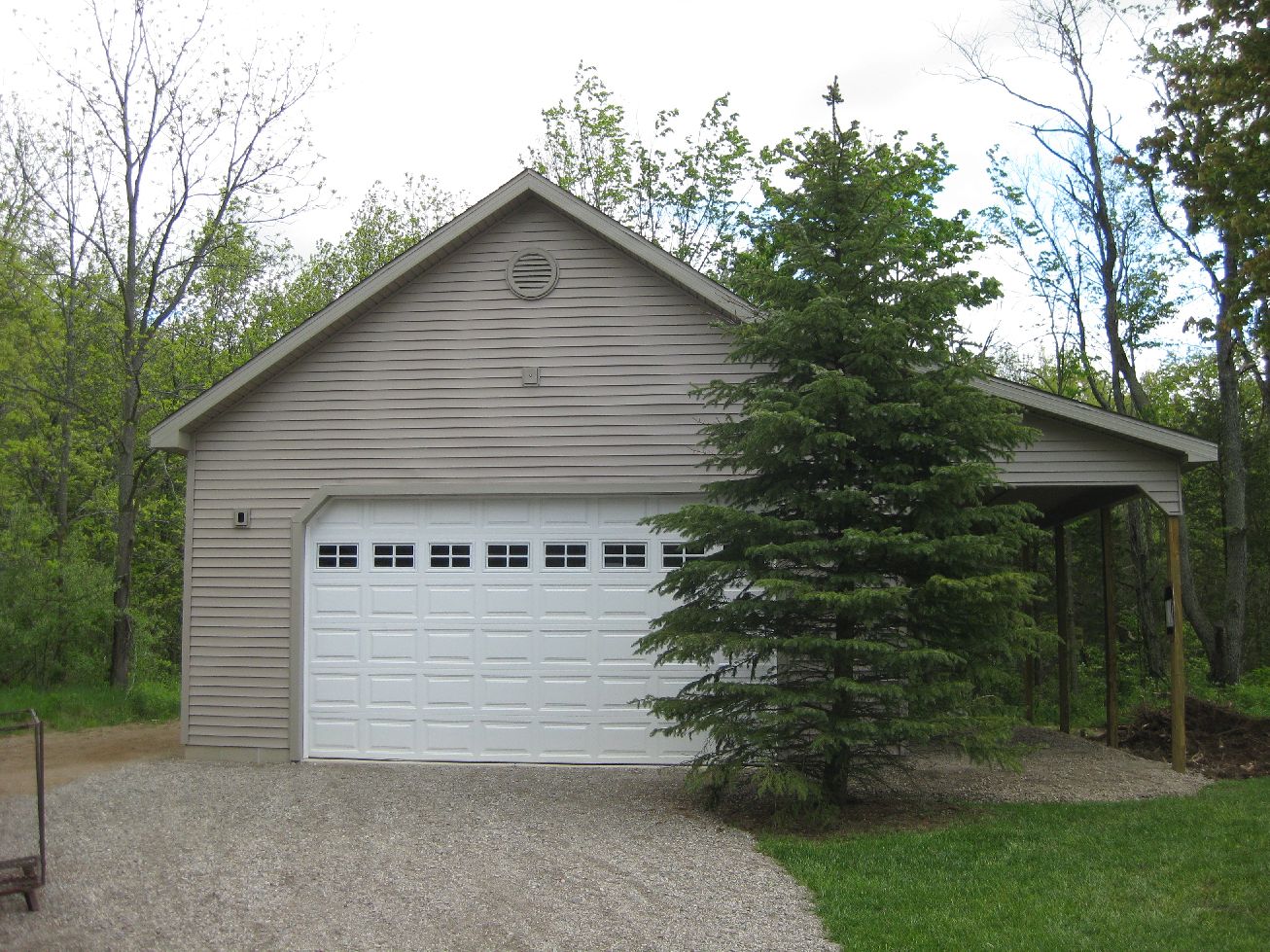

Another View
Click picture to ZOOM

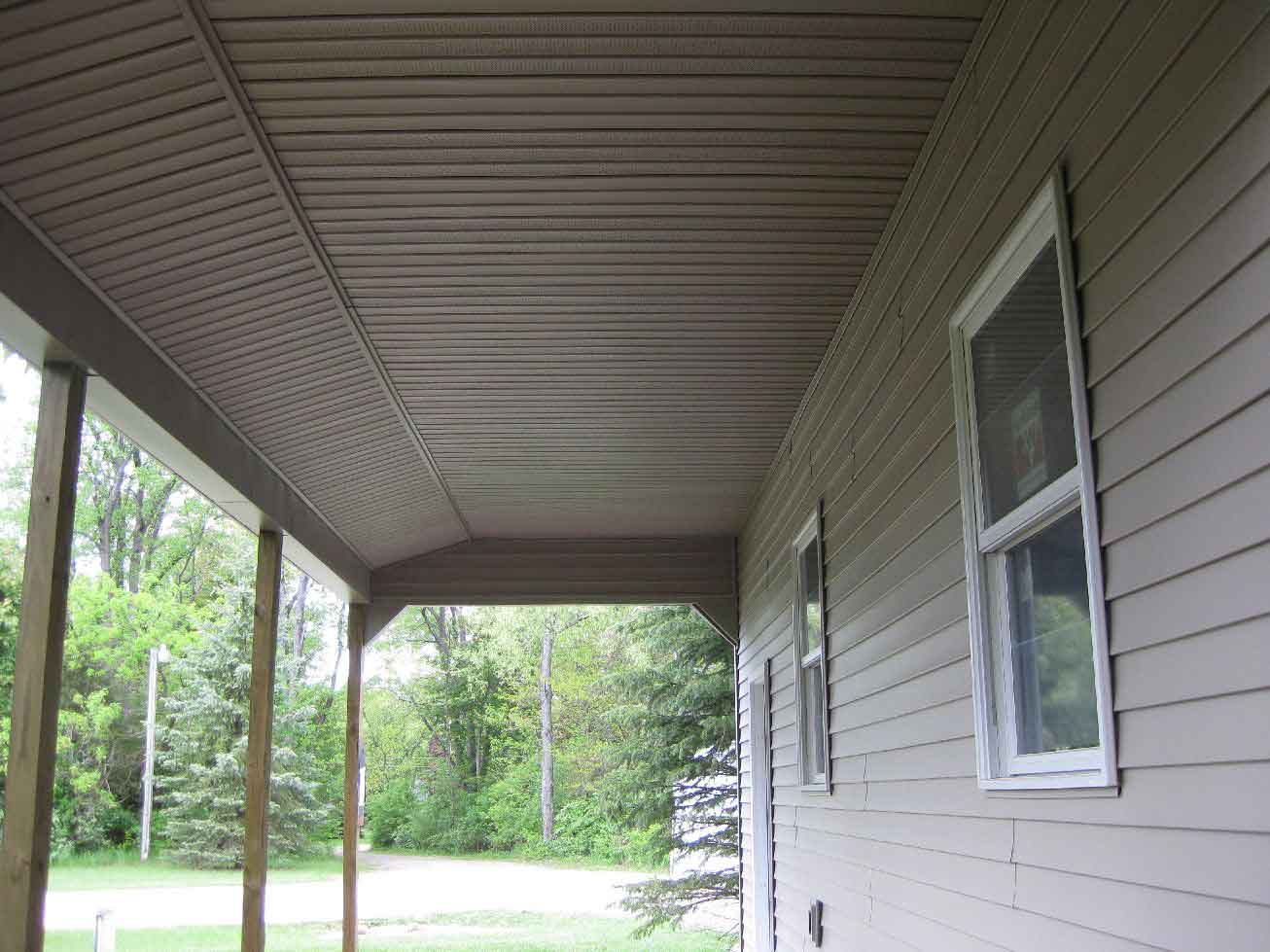

Under the lean-to
Click picture to ZOOM

I spent a lot of time on the soffit. The 2 part effect is to gain headroom from the finished floor / porch. I can easily maneuver my 10' stepladder without worrying about hitting the soffit. Lights are already roughed in but hidden from view for now.

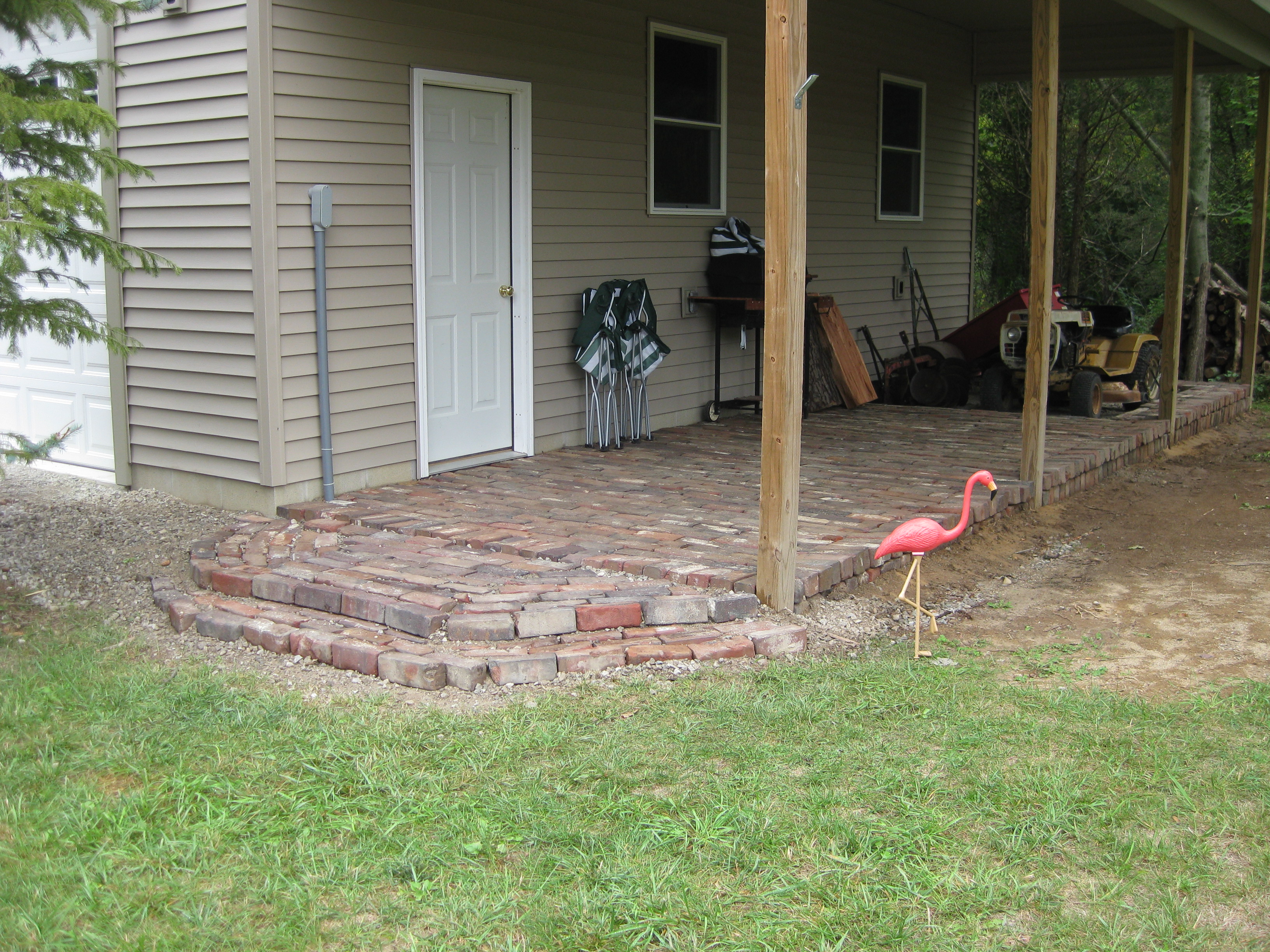

Finally finished the porch...
Click picture to ZOOM

All of these bricks were purchased last year for $55... There are about 1000 in all (I counted them as we put them in the truck - it took 4 trips!)

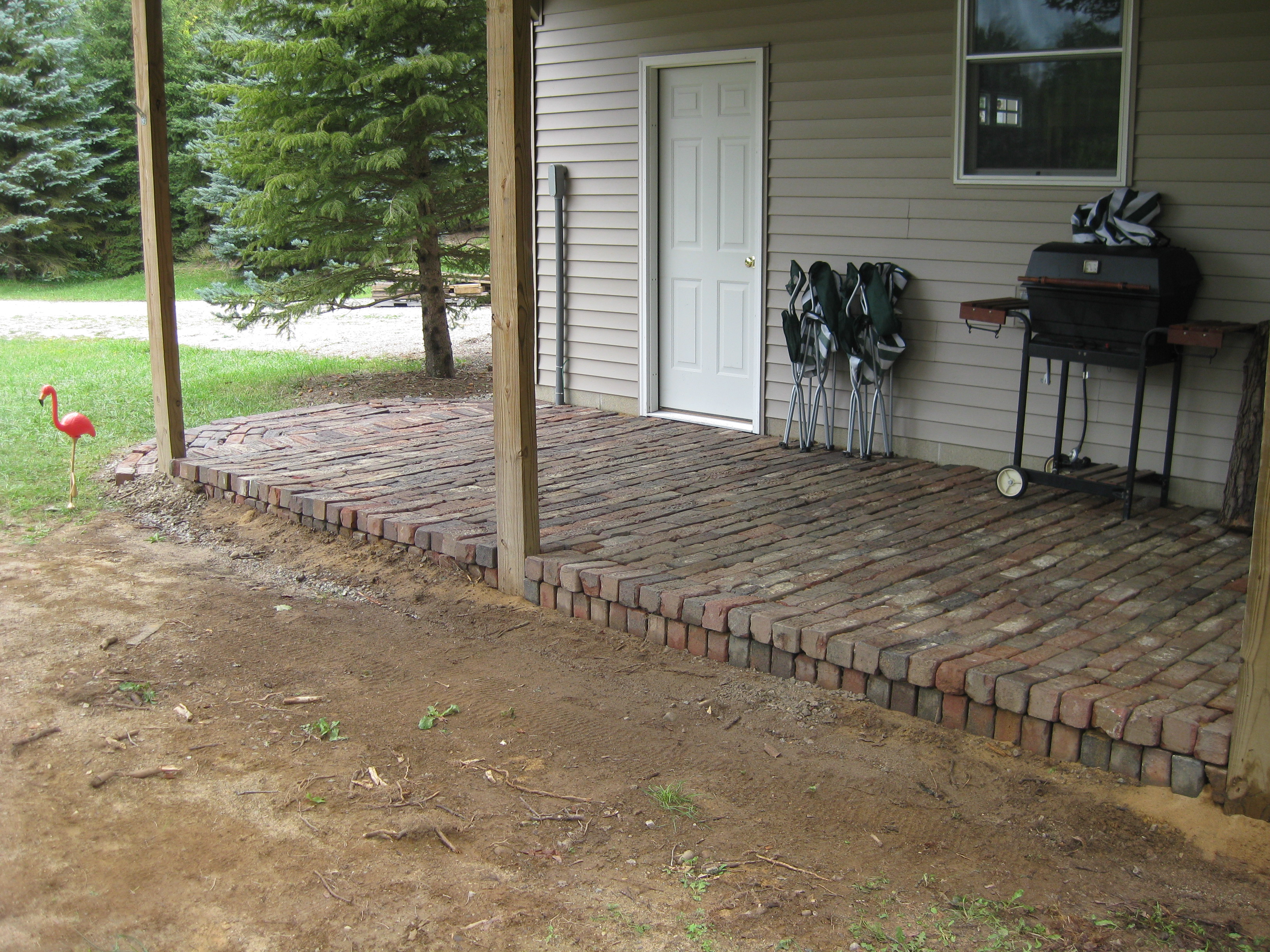

Another view of the porch...
Click picture to ZOOM
